Executive Summary
Alternating media exposure in a semiconductor gas-line purge valve should be treated as a sequence-dependent valve-boundary condition, not automatic proof of seal-material incompatibility or valve failure. A seal may encounter different chemical, pressure, temperature and purge states over time. The order, dwell period and transition between states may change residue, permeation, dimensional response, contact conditions or the way a measurement is interpreted. The actual effect depends on the valve design, media sequence, seal geometry, assembly state, valve-seat condition and test method.
A leak, residue or contamination observation does not identify its own cause. Chemical compatibility, absorption, extraction, swelling, compression loss, particles, seat damage, maintenance errors, incomplete purge, dead volume and instrument background can produce overlapping symptoms. A credible investigation preserves the sequence and valve state, inspects the seal and seat before cleaning, separates evidence classes and verifies the assembled boundary under representative conditions. This article is a general engineering framework; it does not qualify a named valve, medium or seal compound.

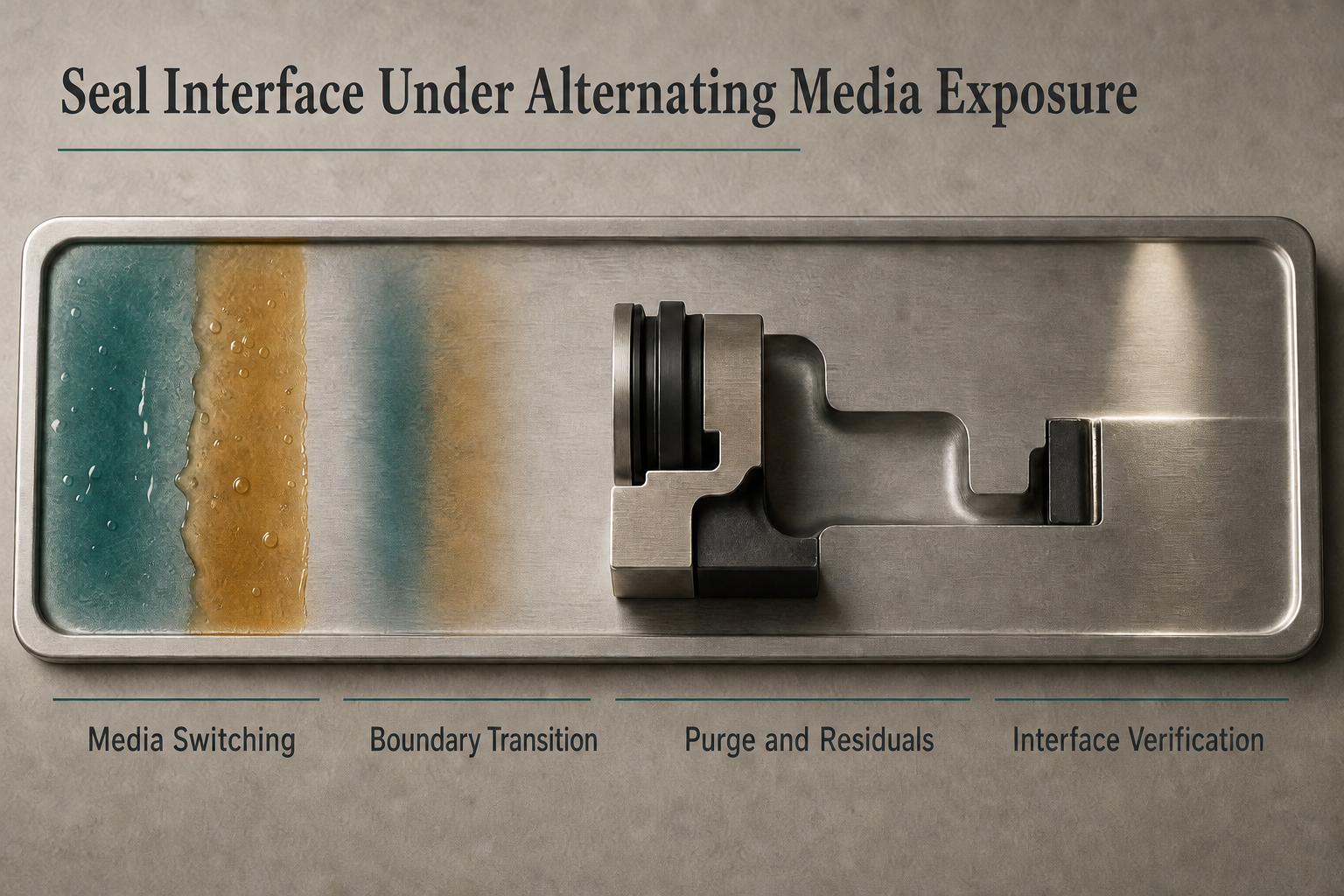

Purge-Valve Seal Boundary and Alternating-Media Exposure Paths
The relevant boundary may include the valve body, seal groove or gland, seal, valve seat, process-side path, purge-side path, dead volume and connected gas-line interfaces. The exact boundary depends on the confirmed valve design. Different media may reach a seal during a valve state, an actuation transition, a purge step or a period of incomplete exchange. A connected line can also retain medium or residue and later present it to the valve boundary.
Alternating exposure differs from a single-medium soak because the seal condition at the start of a later exposure may not be the same as the condition at the start of the first exposure. A prior medium may have been absorbed, extracted, retained in a dead volume or left as residue. A pressure or temperature transition may alter contact or transport. These are possible mechanisms, not claims about a specific installation. The sequence, timing and valve state should be documented before assigning responsibility to the seal.
A seal boundary must also be kept distinct from the complete gas-line system. A downstream restriction, trapped volume, outgassing surface or remote leak may imitate a purge-valve seal problem. Conversely, a local seat scratch or assembly error may create a leak that appears only after a media change because the measurement sensitivity or pressure state has changed. Boundary definition is therefore the first step in root-cause separation.
Table 1. Alternating-Media Exposure Paths and Purge-Valve Seal Consequences
| Possible exposure path or state | Local condition | Possible seal or interface consequence | Evidence to check | Limitation |
| Process-side medium at valve state | Medium contacts the seal during a defined state | Possible absorption, residue or contact change | Valve state and media history | Composition must be supplied |
| Purge medium during transition | Different medium reaches the boundary during purge | Sequential chemical or pressure response | Purge timing and transition record | Timing alone is not diagnosis |
| Rapid or repeated transition | Boundary changes before prior state clears | Transient residue or measurement response | Sequence order and dwell record | No cycle effect is assumed |
| Retained medium in dead volume | Low-exchange region holds prior medium | Delayed exposure or later release | Line layout and exchange review | Requires actual geometry |
| Pressure or temperature change | Exposure state changes with condition | Permeation, compression or friction shift | Condition history and seal evidence | No values without source data |
| Cleaning or maintenance residue | Film remains at seal or seat | Standoff, contamination or wetting change | Pre-cleaning photos and residue review | Residue source may be mixed |
How Sequential Media Exposure Can Change Seal and Interface Conditions
Sequential exposure may change a seal through absorption, extraction, swelling, softening, hardening, embrittlement, residue or altered gas transport. A prior exposure can influence how the material responds to a later one, but the response requires the actual compound, media, order, duration, temperature and pressure to be evaluated. The presence of a leak or visible change does not prove which response occurred.
Permeation and swelling are not interchangeable with assembled leakage. A component may change dimension or transport behavior while the assembled boundary remains within its tested condition, or a small local gap may make an otherwise modest material response significant. Compression set and stress relaxation are separate concerns: contact force may drift with time, temperature, pressure or exposure history, but this requires geometry and recovery evidence rather than only a leak symptom.
Particles, residue, fibers and cleaning-agent films can create standoff, scratches or blocked paths. They may coexist with chemical effects but are not the same mechanism. A valve-seat scratch, pinching, twisting, incorrect seating or actuation misalignment may create a local leak independently of media compatibility. Alternating exposure can reveal an existing weakness without being its original cause.
Table 2. Alternating-Exposure Signatures and Alternative Mechanisms
| Observation or symptom | Alternating-media possibility | Alternative mechanism to separate | Verification approach | Limitation |
| Leak after sequence change | Transition-dependent residue or material response | Seat damage or measurement sensitivity | Compare sequence and boundary evidence | Correlation is not causation |
| Swelling or dimensional change | Absorption or extraction sequence | Compression set or installation effect | Dimensional and exposure review | No compound result assumed |
| Film near seal or seat | Residual medium or extraction product | Cleaner, oil or handling residue | Preserve and characterize residue | Appearance is not composition |
| Particles or scratches | Residue transport or standoff | Maintenance debris or seat wear | Microscopy and interface inspection | Particle presence is not root cause |
| Signal changes with purge | Incomplete exchange or transient state | Dead volume or instrument background | Timing record and test repeat | No purge duration assumed |
| Leak after maintenance | New exposure state or cleaning effect | Pinching, twisting or misalignment | Installation and pre-cleaning record | Maintenance history may be incomplete |
Pressure, Temperature, Purge Timing and Transition Effects
Sequence behavior depends on pressure state, temperature, flow, dwell, transition order, purge duration, valve state, dead volume and connected-line conditions. A purge step may remove a prior medium, dilute it, redistribute residue or create a transient instrument signal. A trapped volume may delay exchange and make the apparent valve response lag behind the commanded state. These are system possibilities that require records; no universal timing or cycle count should be assumed.
Thermal cycling can change seal stiffness, compression and recovery while pressure transitions can change contact loading or transport. Repeated actuation may expose a seating or alignment issue that is not visible in a static inspection. A signal that changes after a longer purge may indicate residual medium, a system boundary effect or measurement stabilization rather than a new seal failure. Purge timing is therefore a system variable to document and test, not an automatic material diagnosis.
Measurement practice can change the interpretation of alternating exposure. Sensor placement, stabilization time, calibration, test-medium selection, instrument sensitivity, background signal and data processing may affect a leak or contamination result. A leak test at one medium or pressure does not establish all media states, and a contamination signal does not identify its source without further evidence. Each test should state its objective, variables and limitation.
Table 3. Inspection and Validation Guide for Alternating Media Exposure
| Check or test | Objective | Key variable or evidence | What it may indicate | Limitation |
| Sequence and valve-state record | Preserve the original boundary state | Order, dwell, valve state and symptom timing | Sequence correlation | Records may be incomplete |
| Seal, groove and seat inspection | Find local physical evidence | Damage, residue, seating and alignment | Material, seat or assembly concern | Cleaning can erase evidence |
| Residue and particle preservation | Separate contamination sources | Location, morphology and composition | Particle, cleaner or medium source | Sample quality matters |
| Compatibility review | Assess conditional material response | Actual medium, compound and exposure | Possible absorption or extraction | Not assembled proof |
| Single versus sequential comparison | Check sequence dependence | Defined order and exposure history | Difference linked to sequence | Conditions must be representative |
| Thermal, pressure and actuation review | Relate transitions to behavior | State history and actuation record | Transient or cycle effect | No life claim follows |
| Purge and dead-volume assessment | Check exchange and retention | Routing, restriction and timing | Residual-medium effect | Needs actual line data |
| Assembled-boundary verification | Assess tested valve condition | Defined media and pressure state | Leak behavior under test | Not universal performance |
| Post-maintenance verification | Confirm restored state | Assembly, purge and test record | Change after service | Criteria must be equipment-specific |
Seal Material, Valve Geometry and Gas-Line Design Considerations
There is no universal best seal material for every semiconductor gas-line purge valve. Selection should connect the confirmed media and cleaning environment with compound compatibility, permeation behavior, cross-section, groove or gland geometry, compression, valve-seat condition, surface finish, actuation and service access. A single compatibility result cannot establish performance across an alternating sequence unless the sequence and assembly boundary are represented.
Geometry controls how the seal responds to expansion, pressure, motion and contact. Compression, retaining features, corner transitions, surface condition and alignment should be reviewed together. Dead volume and line routing also matter because a valve can be exposed to material that remains elsewhere in the connected system. Design controls intended for chemistry should not be confused with controls intended for particles, seat damage, purge timing or measurement error.
Material screening, sequential-media exposure, thermal and pressure cycling, compression-retention checks and assembled-boundary tests each answer different questions. A material test addresses selected component response. A leak test addresses the tested assembly and condition. A contamination analysis addresses evidence in a sample or boundary. None should be presented as a substitute for the others or as proof of service life without representative evidence.
Inspection, Root-Cause Separation and Validation Testing
Begin before cleaning or disassembly. Record the sequence, valve state, symptom, timing, test configuration and any recent maintenance. Preserve the seal, seat, residue and particle evidence where safe. Document medium identity and exposure order only when supplied or measured. Classify each result as observed, suspected, confirmed, inconclusive or not evaluated.
Inspect the seal, groove or gland, valve seat, mating surfaces and actuation alignment. Look for pinching, twisting, scratches, incorrect seating, residue, particles and signs of recovery loss. Review dead volume, connected-line restrictions and possible remote boundaries. Compare used and unused or known-good components only when the comparison is available and appropriately matched.
Separate chemical or material evidence from contamination and assembly evidence. A dimensional change does not prove a leak. A particle at the interface does not prove it caused the leak. A single-medium exposure does not prove alternating-media compatibility. A leak test under one condition does not establish every media state. Test plans should define the sequence, dwell, transition, pressure, temperature, valve state and measurement method without inventing values.
After maintenance, verify seating, alignment, cleaning, purge behavior and the assembled boundary under defined conditions. If the evidence remains ambiguous, report inconclusive or not evaluated rather than selecting a material or sequence with unsupported confidence. This evidence discipline reduces the risk of replacing a seal when the real issue is a seat, line, timing or measurement problem.
Design, Maintenance and Process Controls
Controls should match the mechanism. For alternating chemistry, document media sequence, transition order, dwell and purge timing. For material response, review actual compatibility and representative sequential exposure. For particles and residue, control cleaning, handling and contact surfaces. For seat or assembly damage, review alignment, seating, actuation and maintenance tools. For gas-line effects, review dead volume, restrictions and other boundary paths. For measurement error, standardize calibration, setup and data interpretation.
Maintenance records should link seal identity and orientation, valve state, cleaning and drying, exposure history, assembly observations, purge sequence and post-service verification. A seal that appears acceptable may still contain hidden residue, recovery loss or local damage. Reuse and replacement decisions should follow equipment-specific criteria. If the actual acceptance limit or interval is not supplied, the article can recommend review but cannot assign a universal threshold.
A design change should follow evidence. A new compound may not correct a scratched seat. A longer purge may not correct pinching or misalignment. A line change may not correct chemical response. The most efficient path is to preserve the sequence, define the boundary, separate mechanisms and select tests that match the actual valve and media states.
FMEA Risk Analysis: Alternating Media Exposure of Purge Valve Seals
The following qualitative FMEA is an engineering screening aid, not field statistics, a product rating or a confirmed failure analysis. It contains no assumed probability, severity, RPN, gas concentration, leak rate, cycle count or service-life claim. Each row requires confirmation against the actual valve, media sequence, assembly and measurement history.
Table 4. Qualitative FMEA for Alternating Media Exposure of Purge Valve Seals
| Failure Mode | Cause | Local Effect | System Effect | Detection Method | Control Action |
| Sequential absorption or extraction | Changing media interact with seal | Possible dimension or property change | Boundary drift or residue | Exposure and material review | Use representative sequence evidence |
| Swelling near interface | Absorption or retained medium | Local compression change | Leak sensitivity | Dimensional and assembly inspection | Review compound and geometry |
| Permeation or residual retention | Transport or dead volume | Medium remains near seal | Delayed signal or contamination | Sequence and line review | Control exchange and verify boundary |
| Compression loss after exposure | Dwell, cycling or stress relaxation | Reduced recovery | Lower contact force | Recovery and leak review | Define representative conditions |
| Particle or residue standoff | Process, cleaning or handling debris | Local contact interruption | Leak or contamination risk | Microscopy and residue review | Control cleanliness and reassembly |
| Seat scratch or deformation | Actuation or service damage | Local seal path damage | Persistent local leak | Seat and alignment inspection | Protect and verify seat condition |
| Post-maintenance misalignment | Pinching, twisting or incorrect seating | Uneven contact | Repeat symptom | Installation record and inspection | Controlled assembly procedure |
| Incomplete purge or wrong timing | Sequence or valve-state error | Residual medium at boundary | Transient or false signal | Timing and state record | Verify sequence and dwell |
| Dead-volume system effect | Trapped medium or restriction | Delayed exchange | Valve defect misdiagnosis | Line and path review | Assess connected boundary |
| Measurement background error | Calibration, sensitivity or processing | Apparent leakage or contamination | Wrong corrective action | Calibration and repeat test | Standardize measurement method |
Conclusion
Alternating media exposure should be investigated as a sequence-dependent gas-boundary condition involving chemistry, permeation, compression, valve-seat integrity, purge timing, contamination and measurement. A leak, residue or signal change does not by itself prove seal incompatibility or identify the root cause. Chemical response, particles, seat or assembly damage, gas-line effects and measurement uncertainty can overlap.
A defensible corrective action begins with the actual valve design, media sequence, pressure and temperature history, purge timing, seal details, maintenance records and test method. Separate material response from assembled sealing, a possible mechanism from a confirmed diagnosis and a valve symptom from a complete gas-line effect. Only then should the team decide whether to review the seal material, geometry, seat, purge sequence, line boundary or measurement system.
FAQ
Q:Why can alternating media affect a semiconductor gas-line purge valve seal?
A:Different media and transitions may change chemical exposure, residue, transport, contact or measurement response. The effect depends on the actual sequence, dwell, pressure, temperature, valve state, seal and assembly. The observation alone does not establish root cause.
Q:Is a single-medium compatibility test enough for alternating exposure?
A:Not necessarily. A single-medium test may address one component response, but it does not reproduce order, transition, dwell or residual-medium effects unless those conditions are represented. Sequential exposure and assembled-boundary evidence may be needed.
Q:How can chemical incompatibility be separated from seat or assembly damage?
A:Preserve the boundary before cleaning, inspect the seal and seat, review assembly records and separate material evidence from scratches, pinching, twisting, particles and residue. Controlled exposure can support a material conclusion, but it does not replace assembly verification.
Q:Can purge timing change an apparent seal leak?
A:It can affect residual medium, dead-volume exchange and instrument stabilization, so a signal may change with purge state. This does not prove that timing is the root cause. The valve state, sequence, timing and measurement method should be recorded and compared.
Q:How should swelling, extraction and permeation be evaluated?
A:Use the actual seal compound and representative media sequence where available, and define the exposure, temperature, pressure and duration. Inspect dimensional or material response separately from assembled leakage. No universal response should be inferred without evidence.
Q:What should be inspected before replacing a purge valve seal?
A:Record the original sequence and symptom, then inspect the seal, groove or gland, seat, mating surfaces, alignment, residue, particles, dead volume and maintenance condition. Review the test setup before selecting a replacement or redesign.
Q:Which tests can verify a seal under sequential media exposure?
A:A defined plan may combine sequence-controlled exposure, material or compression review, valve-seat inspection and assembled-boundary verification under stated conditions. Each method has a separate purpose and limitation; no single test establishes service life by itself.
Q:How can particles or residue be distinguished from a chemical seal problem?
A:Preserve location and morphology before cleaning, review process and maintenance history, and characterize the material where appropriate. Particles or residue may coexist with chemical response, so their presence alone does not prove causation.
