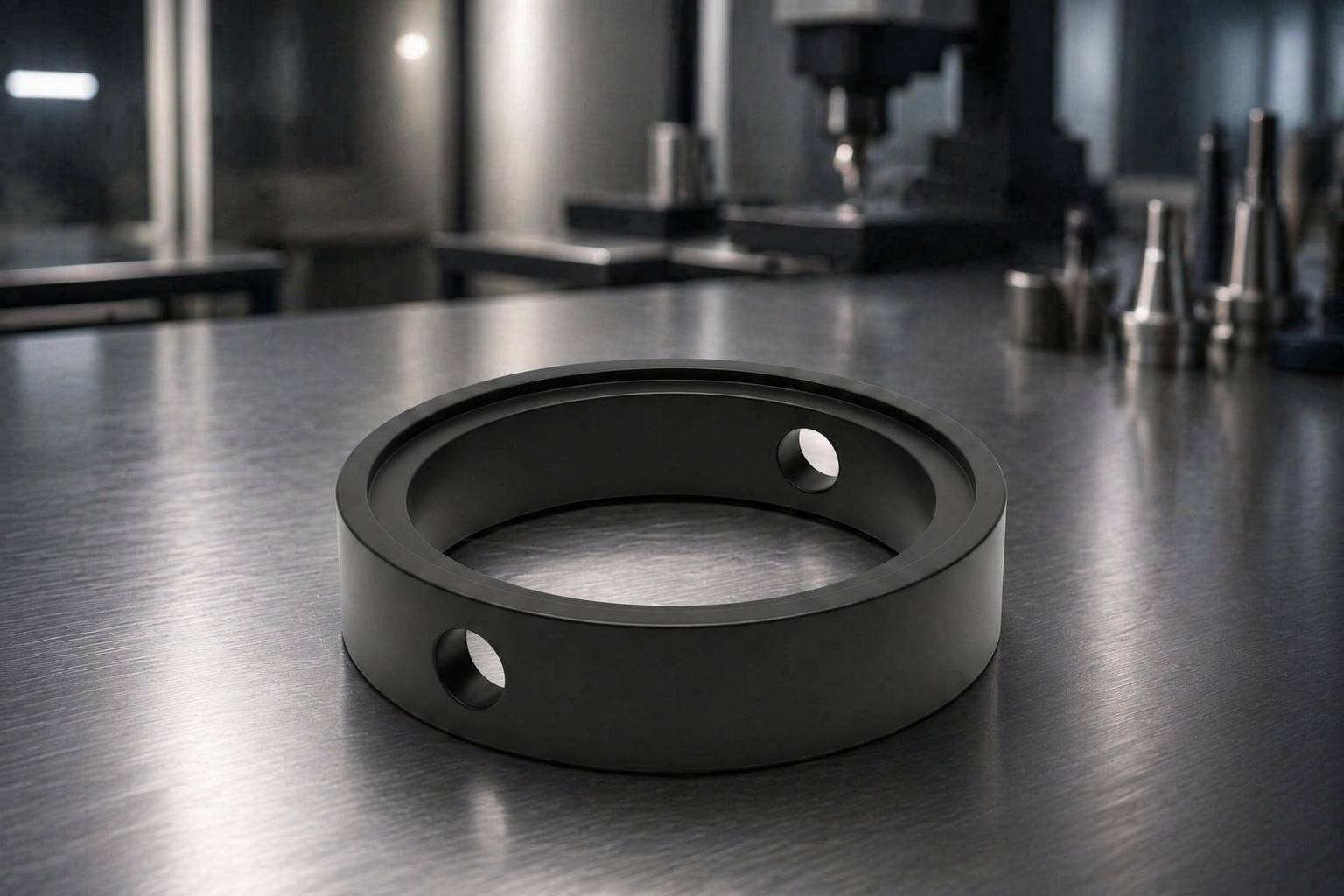

In the mission-critical environments of global pharmaceutical, semiconductor, and petrochemical manufacturing, the butterfly valve seat is the primary engineering barrier between operational excellence and catastrophic failure. Yokey Precision, a leading industry standard-setter, recognizes that high-performance sealing is a complex science rather than a mere commodity, requiring the perfect synergy of molecular engineering and dimensional precision. From micro-bore DN25 (1″) sanitary units to massive DN1200+ (48″) infrastructure projects, our comprehensive expertise in EPDM, FKM, Silicone, and FFKM ensures that your systems achieve true zero-leakage integrity and optimized reliability, regardless of the temperature extremes or aggressive media involved.

 Molecular Engineering: Why Yokey Polymers Outperform the Industry

Performance in extreme environments is not accidental; it is engineered at the molecular level. Standard elastomers often succumb to thermal degradation or chemical swelling due to cost-driven formulation compromises. Yokey Precision eliminates these risks through high-purity polymer chemistry.

1. EPDM (Ethylene Propylene Diene Monomer): The Peroxide Advantage.

While standard EPDM is sulfur-cured, Yokey exclusively utilizes proprietary peroxide curing for our high-end butterfly valve seats. Sulfur vulcanization creates polysulfidic cross-links that break down rapidly in 150°C steam. Yokey’s peroxide-cured EPDM establishes robust Carbon-Carbon (C-C) bonds, providing superior heat age resistance and compression set performance. This is essential for DN25-DN450 sanitary valves where zero-leachable purity and SIP (Sterilization-in-Place) compatibility are mandatory.

2. FKM (Fluoroelastomer): Harnessing the Fluorine Shield.

FKM’s stability is derived from the Carbon-Fluorine (C-F) bond—one of the strongest in nature. Yokey offers multiple grades, including Type A (66% fluorine) for standard oil resistance, and Type B or Type F (up to 70% fluorine) for aggressive aromatic hydrocarbons and biofuels. Our FKM kinetics prevent the ‘volumetric swelling’ that typically causes butterfly valves to jam in refinery and power generation environments.

3. Silicone (VMQ): Mastering Thermal Extremes.

Silicone seats feature a backbone of Silicon and Oxygen (Si-O), offering unmatched flexibility at -60°C and dry heat resistance up to +230°C. Yokey utilizes platinum-cured Silicone to ensure the lowest level of extractables, making it the premier choice for medical-grade air handling and pharmaceutical dosing lines. We leverage Silicone’s unique low-toxicity profile while optimizing seat geometry to compensate for its lower mechanical tear strength.

4. FFKM (Perfluoroelastomer): The Pinnacle of Chemical Immunity.

FFKM represents the ultimate evolution in sealing technology, effectively a rubberized version of PTFE. With nearly 100% fluorination of the polymer chain, it is virtually impervious to over 1,800 chemicals and remains stable at 320°C+. For mission-critical semiconductor etching or high-temperature nuclear applications, Yokey’s FFKM provides a Total Cost of Ownership (TCO) advantage by extending Mean Time Between Failures (MTBF) by over 500% compared to standard FKM.

Manufacturing Dynamics: Yokey’s Proprietary Process for ±0.015mm Precision

A butterfly valve seat’s performance is zero if its dimensional accuracy is compromised. Most industry failures are caused by ‘Shrinkage Drift’—where a factory uses a single mold for multiple materials despite their vastly different contraction rates.

CNC Mold Compensation. FKM shrinks at nearly double the rate of EPDM. Generic manufacturers often produce ‘loose’ EPDM seats and ‘tight’ FKM seats using the same tooling. Yokey employs CNC High-Precision Tooling Centers to create dedicated molds for every specific formulation. This ensures that every seat from DN25 to DN1200 hits the ±0.015mm tolerance required for perfect disc interference and constant torque control.

16-Hour Post-Curing Protocol. To eliminate internal stresses and reach maximum cross-link density, Yokey seats undergo a 16-hour post-vulcanization cycle in temperature-stabilized ovens. This process drives out volatile decomposition products and reduces the Compression Set to below 15%—the critical benchmark for ensuring the seat pops back to its original shape even after years of continuous valve cycling.

Comprehensive DN Sizing & Application Matrix

Yokey Precision covers the entire spectrum of industrial sizing requirements, adhering to ISO 5752, ANSI B16.10, and DIN standards.

Global Trust: Certified Performance for High-Risk Environments

Yokey Precision is an IATF 16949:2016 certified Hidden Champion. Our products are fully compliant with FDA, NSF-61, UL157, and KTW standards. Every seat is validated by our 100% CCD Automated Inspection units, ensuring that only zero-defect components enter your supply chain. We don’t just sell rubber; we sell the peace of mind that comes with industry-leading reliability.

Conclusion: Secure Your Operations with Yokey Precision

From the micro-precision required for DN25 medical dosing to the massive scaling of DN1200 desalination projects, Yokey Precision is your technical partner. Our pursuit of molecular and manufacturing perfection ensures your factory stays operational, safe, and efficient.
