Polytetrafluoroethylene (PTFE), renowned for its exceptional chemical stability, high/low-temperature resistance, and low friction coefficient, has earned the nickname “Plastic King” and is widely used in chemical, mechanical, and electronic industries. However, pure PTFE has inherent drawbacks such as low mechanical strength, susceptibility to cold flow deformation, and poor thermal conductivity. To overcome these limitations, glass fiber reinforced PTFE composites have been developed. This material significantly improves multiple performance metrics while retaining the superior properties of PTFE, thanks to the reinforcing effect of glass fibers .
1. Significant Enhancement of Mechanical Properties
The highly symmetrical molecular chain structure and high crystallinity of pure PTFE result in weak intermolecular forces, leading to low mechanical strength and hardness. This makes it prone to deformation under significant external force, limiting its applications in fields requiring high strength. The incorporation of glass fibers brings a substantial improvement to the mechanical properties of PTFE. Glass fibers are characterized by their high strength and high modulus. When uniformly dispersed within the PTFE matrix, they effectively bear external loads, enhancing the overall mechanical performance of the composite. Research indicates that with the addition of an appropriate amount of glass fiber, the tensile strength of PTFE can be increased by 1 to 2 times, and the flexural strength becomes even more remarkable, improving by approximately 2 to 3 times compared to the original material. Hardness also increases significantly . This allows glass fiber reinforced PTFE to perform reliably in more complex working environments in mechanical manufacturing and aerospace, such as in mechanical seals and bearing components, effectively reducing failures caused by insufficient material strength .
2. Optimized Thermal Performance
Although pure PTFE performs well in high and low-temperature resistance, capable of long-term use between -196°C and 260°C, its dimensional stability is poor at high temperatures, where it is prone to thermal deformation. The addition of glass fibers effectively addresses this issue by increasing the material’s heat deflection temperature (HDT) and dimensional stability . Glass fibers themselves possess high heat resistance and rigidity. In high-temperature environments, they restrict the movement of PTFE molecular chains, thereby curbing thermal expansion and deformation of the material. With an optimal glass fiber content, the heat deflection temperature of glass fiber reinforced PTFE can be increased by more than 50°C. It maintains stable shape and dimensional accuracy under high-temperature operating conditions, making it suitable for applications with high thermal stability requirements, such as high-temperature pipelines and high-temperature sealing gaskets .
3. Reduced Cold Flow Tendency
Cold flow (or creep) is a notable issue with pure PTFE. It refers to the slow plastic deformation that occurs under a constant load over time, even at relatively low temperatures. This characteristic limits the use of pure PTFE in applications requiring long-term shape and dimensional stability. The incorporation of glass fibers effectively inhibits the cold flow phenomenon of PTFE. The fibers act as a supporting skeleton within the PTFE matrix, hindering the sliding and rearrangement of PTFE molecular chains. Experimental data show that the cold flow rate of glass fiber reinforced PTFE is reduced by 70% to 80% compared to pure PTFE, significantly enhancing the dimensional stability of the material under long-term load. This makes it suitable for manufacturing high-precision mechanical parts and structural components .
4. Improved Wear Resistance
The low friction coefficient of pure PTFE is one of its advantages, but it also contributes to its poor wear resistance, making it susceptible to wear and transfer during friction processes. Glass fiber reinforced PTFE improves the surface hardness and wear resistance of the material through the reinforcing effect of the fibers . The hardness of glass fiber is much higher than that of PTFE, enabling it to effectively resist wear during friction. It also alters the friction and wear mechanism of the material, reducing adhesive wear and abrasive wear of PTFE. Furthermore, glass fibers can form minute protrusions on the friction surface, providing a certain anti-friction effect and reducing fluctuations in the friction coefficient. In practical applications, when used as a material for friction components like sliding bearings and piston rings, the service life of glass fiber reinforced PTFE is significantly extended, potentially by several times or even dozens of times compared to pure PTFE . Studies have shown that the wear resistance of PTFE composites filled with glass fiber can be improved by nearly 500 times compared to unfilled PTFE materials, and the limiting PV value is increased about 10 times .
5. Enhanced Thermal Conductivity
Pure PTFE has a low thermal conductivity, which is not conducive to heat transfer and poses limitations in applications with high heat dissipation requirements. Glass fiber has relatively high thermal conductivity, and its addition to PTFE can, to some extent, improve the thermal conductivity of the material . Although the addition of glass fiber does not drastically increase the thermal conductivity coefficient of PTFE, it can form heat conduction pathways within the material, accelerating the speed of heat transfer. This gives glass fiber reinforced PTFE better application potential in the electronic and electrical fields, such as in thermal pads and circuit board substrates, helping to address the heat accumulation issues associated with the poor thermal conductivity of pure PTFE . The improved thermal conductivity also aids in dissipating frictional heat in applications like bearings, contributing to better performance .

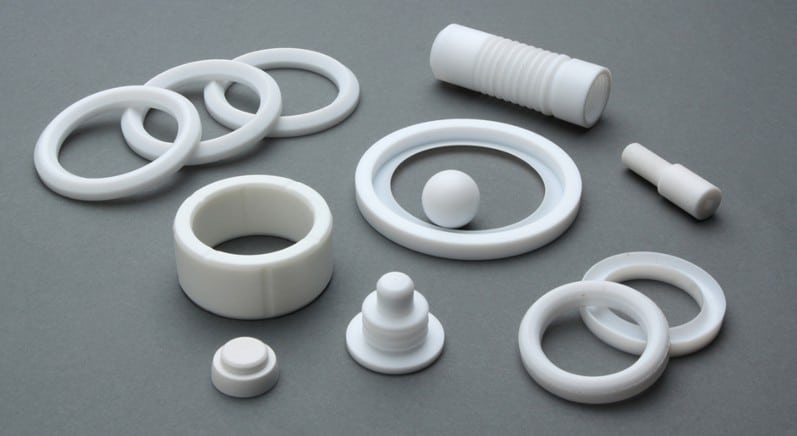

Application Scope: This composite material is widely used in industrial seals, high-load bearings/bushings, semiconductor equipment, and various wear-resistant structural parts in the chemical industry . In the electronics field, it is employed in manufacturing insulating gaskets for electronic components, insulation for circuit boards, and various protective seals . Its functionality is further extended to the aerospace sector for flexible thermal insulation layers .
Note on Limitations: While glass fiber significantly enhances many properties, it is important to note that as the glass fiber content increases, the tensile strength, elongation, and toughness of the composite may decrease, and the friction coefficient can gradually increase . Furthermore, glass fiber and PTFE composites are not suitable for use in alkaline media . Therefore, the formulation, including the percentage of glass fiber (typically 15-25%) and potential combination with other fillers like graphite or MoS2, is tailored to meet specific application requirements .
