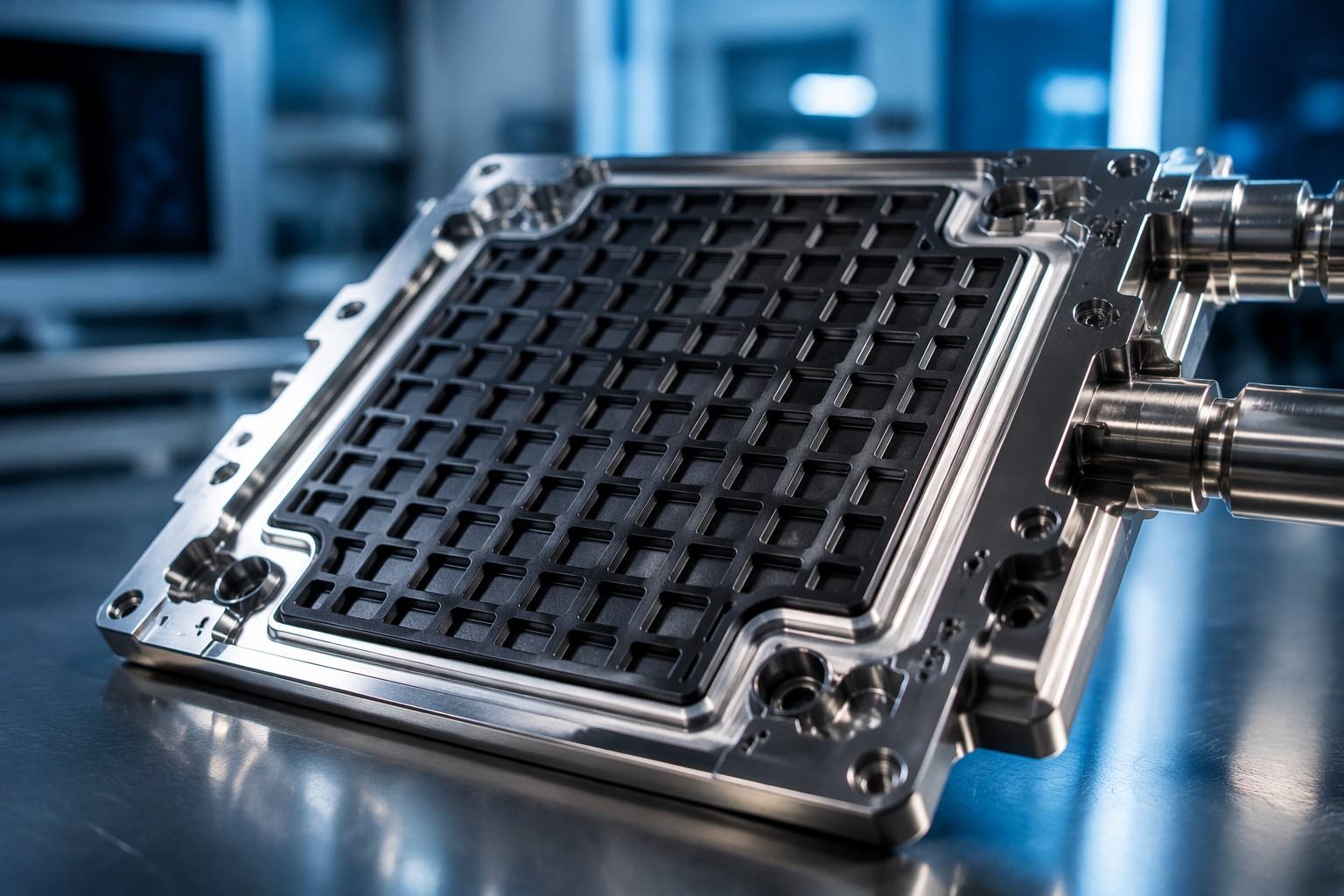

With the full-scale deployment of high-density computing architectures like NVIDIA Blackwell (GB200), rack heat densities have surged to over 100kW. This paradigm shift mandates the transition from air to liquid cooling. However, high-flow pump cycles generate intense mechanical vibrations (50Hz-500Hz) that threaten the structural integrity of ultra-thin cold plates. This whitepaper provides a deep dive into the precision ‘Waffle’ gasket: a ‘physical firewall’ engineered through rheological modeling and high-purity chemistry to mitigate micro-vibration-induced leakage and protect high-value compute hardwares.

I. Design Logic: Breaking ‘Bulk Locking’ through Rheological Engineering

In classical rheology, rubber is nearly incompressible with a Poisson’s ratio extremely close to 0.5. Under massive bolt preloads within a closed housing, standard flat gaskets molecules have no space to displace horizontally, leading to ‘Bulk Locking’—a state of near-infinite apparent stiffness where vibration waves are transmitted losslessly to fragile electronic components.

Advanced ‘Waffle’ engineering standards require a calculated 30%-45% ‘Void Volume Ratio.’ This allows the elastomer to creep laterally into pre-defined gaps under pressure (Lateral Bulging), maintaining a Dynamic-to-Static Stiffness Ratio (K-ratio) below 1.35. This molecular ‘breathing space’ is the core logic that ensures efficient energy absorption even under loads exceeding 100 bar.

II. Material R&D Standards: Zero-Sulfur and Low-Outgassing Protocols

For a 10-year operational lifecycle, material purity is the ultimate baseline. In 80°C-95°C high-heat environments, R&D must follow these protocols:

1. Zero-Corrosion Redline Management: Conventional sulfur curing systems leach trace sulfur, forming black copper sulfide scale that clogs 0.2mm micro-channels. We recommend Peroxide Cross-linking to establish stable Carbon-Carbon (C-C) bonds, eliminating chemical corrosion at the source.

2. Low Outgassing (SEMI F21): Volatile condensable materials can condense on GPUs as oil films, inducing electrical shorts. Engineering paths must satisfy SEMI F21 or NASA-grade standards, ensuring TML < 1.0% and CVCM < 0.1% for a clean operating environment.

III. Precision Manufacturing: Defining Micro-Precision Delivery Benchmarks

Thin-profile waffle gaskets present extreme manufacturing challenges. Leveraging high-precision standards, the framework for consistent delivery rests on three pillars:

• PID Dynamic Mold Compensation: A 5°C delta causes a 0.025mm thermal expansion shift. Advanced manufacturing requires independent heating elements in all four mold corners with PID algorithms and high-modulus ceramic insulation plates. This is the engineering prerequisite for suppressing thickness drift and ensuring large-format flatness.

• 0.05mm CNC Micro-Vent Technology: The waffle tips are high-risk zones for air entrapment. Utilizing CNC-machined 0.05mm vent arrays combined with Ra 0.2 mirror-finish cavity grinding eliminates ‘Short Shots’ and prevents structural howling caused by localized hardening.

• 100% In-line CCD Inspection: Quality control leverages high-resolution CCD scanning for 100% digital verification. This allows for the delivery of precise ‘Thickness Heatmap’ reports, ensuring beyond-standard reliability and full lifecycle traceability.

IV. Value Engineering: Transitioning to ‘Asset Insurance’ Logic

A precision gasket is not an expense; it is an insurance policy for a computing rack. When a $10 component fail, it compromises an $800,000 asset. Advanced technical solutions provide an ‘Asset Protection ROI’ exceeding 13,000x by integrating early-stage Dynamic Mechanical Analysis (DMA) and long-term reliability modeling.

V. Conclusion: Establishing Technical Certainty in Sealing

The evolution of liquid cooling pushes material science to its limits. Yokey Precision is dedicated to being your technical R&D partner, delivering total sealing solutions from proof-of-concept to global-scale stable production.
