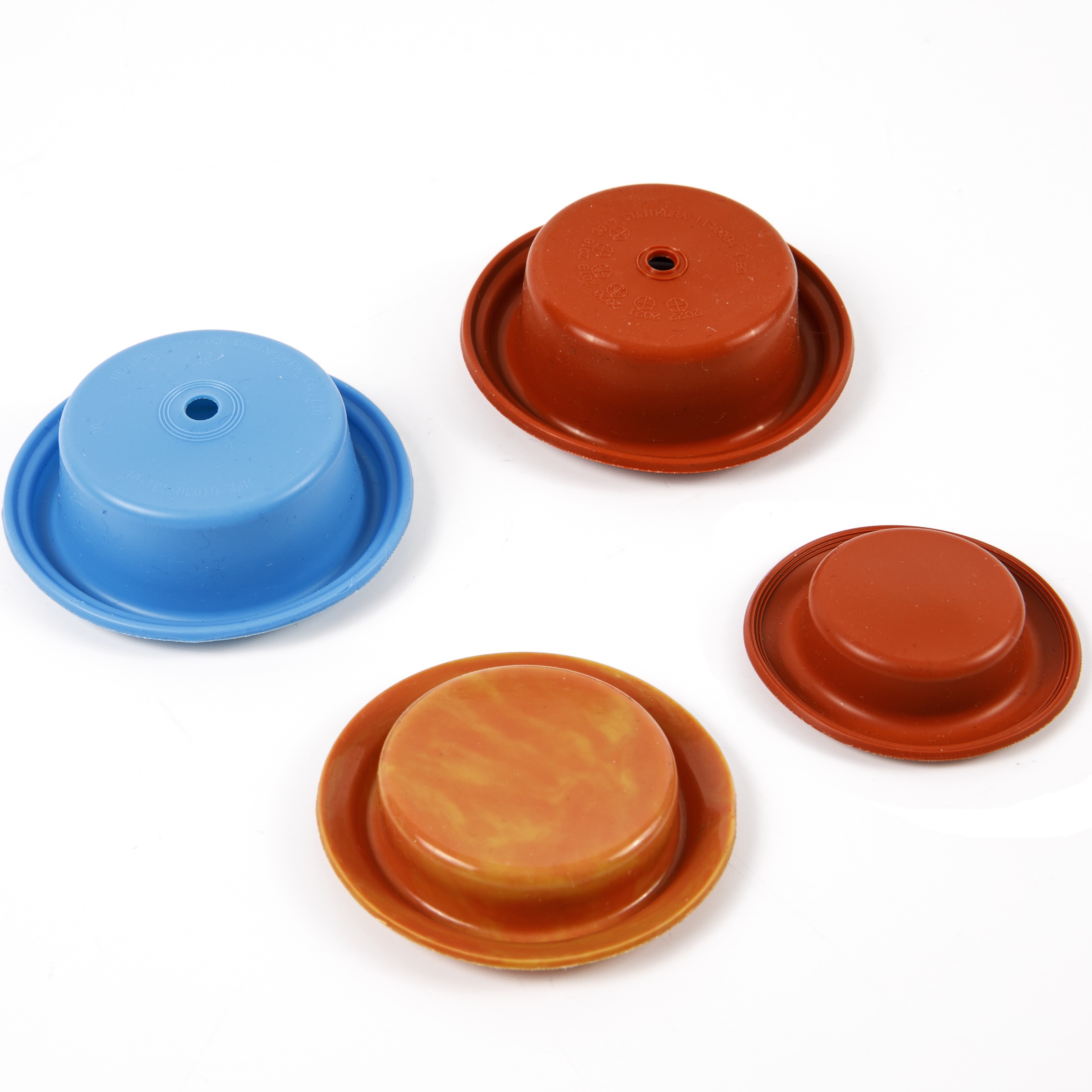

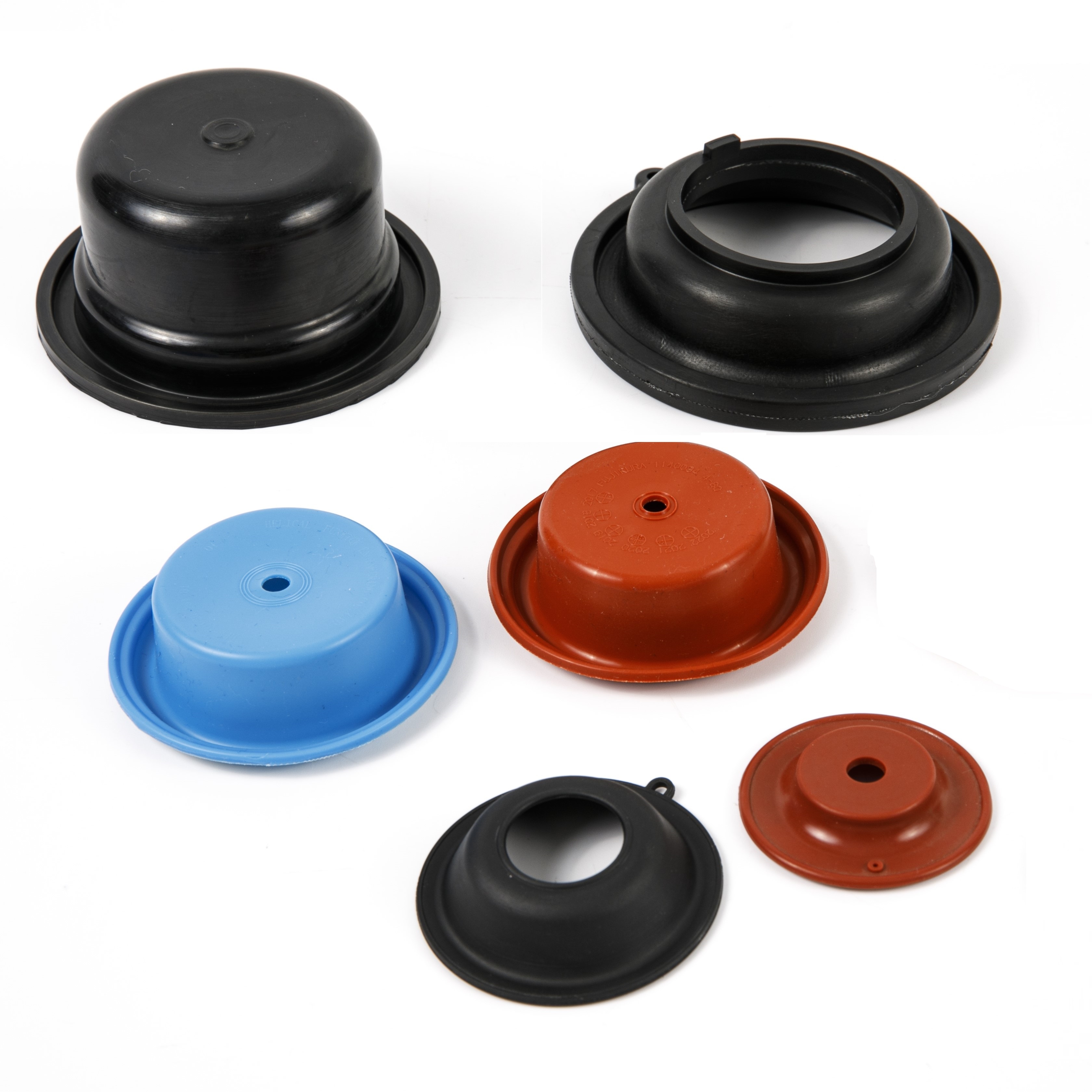

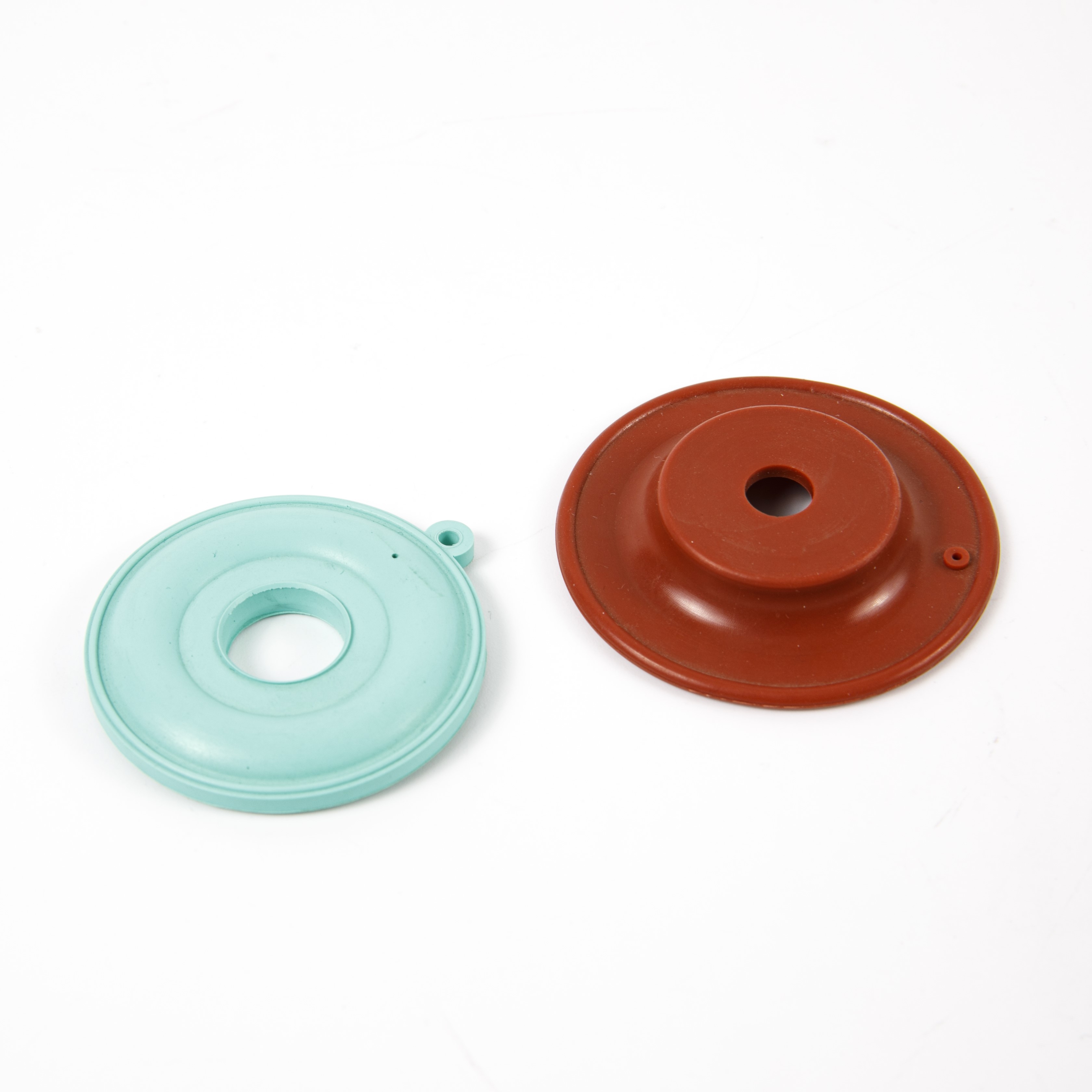

High Pressure Resistant Fiber Rubber Pump Diaphragm

Short Description:

All kinds of Diaphragm&Fiber-Rubber Diaphragm produced by our factory are suitable for automatic instrument high-tech electronic products, automobile manufacturing…


  • Place of Origin: Zhejiang, China
  • Brand Name: OEM/YOKEY
  • Model Number: CUSTOMIZED
  • Application: Mainly used for flow, pressure, differential, liquid level, constant temperature volume thermal compensation valves, regulating valves
  • Certificate: FDA,KTW,ROHS,
  • Feature: High reliability, good compound, long working life
  • Material Type: NBR/EPDM/SIL/FKM etc.
  • Working temperature: -40 ℃ -- 300 ℃
  • Product Detail

    Product Tags

    Quick Details

    Brand Name:

    YOKEY/OEM

    Application:

    Automotive Industry, Drinking water treatment, wastewater treatment

    Color:

    Custom

    Certificate:

    IATF16949/RoHS/REACH/PAHS/KTW/NSF

    Material Type:

    NBR FKM EPDM CR SIL etc.

    Feature:

    Sealing Performance/Wear Resistance/High&Low Temperature Resistan

    Size:

    Non-Standard/Standard

    MOQ:

    20000pcs

    Hardness:

    According to the material

    Packing:

    Plastic Bag/Custom

    Working temperature:

    Choose Suitable Material

    Certification:

    RoHS, Reach

    Product Details

    Product Info

    Product name

    Fabric-Rubber Diaphragm&Rubber diaphragm

    Material Type

    NBR,EPDM,SIL,FKM,SBR,NR,etc.

    Hardness Range

    40~70 Shore A

    Color

    Customized

    Size

    Customized

    Application

    Pump, valve and other control equipment

    Certificates

    FDA,RoHS,REACH,PAHs

    OEM / ODM

    Available

    Packing Details

    PE plastic bags then to the carton / as per your request

    Lead Time

    1).1days if goods in stock

    2).10days if we have existing mould

    3).15days if need open new mould

    4).10days if annual requirement informed

    Port of Loading

    Ningbo

    Shipping Method

    SEA,AIR,DHL,UPS,FEDEX,TNT, etc.

    Payment Terms

    T/T,L/C,Paypal, Western Union

    Fiber-rubber diaphragm

    Rubber diaphragm with pressure control/diaphragm/seal function is our main product.

    The product combines the unique sealing property of rubber with the strength of the base cloth, which can accurately control the pressure and the movement stroke of parts, and is used by many users.

    The company specializes in producing laminated rubber diaphragm, from the processing of all kinds of flat diaphragm, is now widely used as automobile parts diaphragm, is evaluated as the leading domestic diaphragm production enterprises.

    Rubber diaphragm is divided into

    1. Isolation film

    Diaphragm, for short, only isolates the flow, with no pressure difference between the two isolated parts.

    2. Permeable film

    The use of rubber film on gas or liquid has a certain permeability and selectivity of this feature, the role of some fluids.  The membrane itself moves very little or no.

    3.  Sports film

    These films act as seals between stationary and moving parts.  At the same time are generally transmitted power!

    This type of film is most widely used.

    Rubber laminated diaphragm

    It is mainly used in valves, control valves, automatic mechanical follow-up devices, switches and counters of flow, pressure, differential, liquid level, constant temperature volume thermal compensation, etc.  Its advantages lie in high reliability, good complexity, long working life and low cost.

    The rubber diaphragm produced by the company is more than 2 million times of bending, thickness in 0.5-5 mm, and can be processed according to the special requirements of customers, meet the temperature of -40℃--300℃, special media, pressure, non-toxic and other requirements.

    1. Develop all kinds of large, small, thick, thin clip cloth diaphragm.

    2. Clamping cloth compressive intensity, according to customer demand, the use of suitable glue, cloth bonding molding.

    3. Rubber materials include NBR, EPDM, CR, NR, SILICONE, FKM, etc.

    4. Fiber cloth has a variety of warp and weft yarn of nylon, dacron, cotton canvas, telescopic cloth, long service life, can accurately and other control components synchronous operation, to ensure the pulse compressed air blowing.

    Fiber-rubber diaphragm are available in the following elastomers:

    ·NBR(Nitrile-Butadiene Rubber)·HNBR(Hydrogenated Acrylonitrile-butadiene Rubber)

    ·XNBR(Carboxylated nitrile rubber)

    ·EPDM/EPR(Ethylene-propylene)

    ·VMQ(Silicone rubber)

    ·CR(Neoprene Rubber)

    ·FKM/FPM(Fluorocarbon)

    ·AFLAS(Tetrapropyl Fluoro Elastomer)

    ·FVMQ(Fluorosilicone)

    ·FFKM(Aflas® or Kalrez®)

    ·PTFE(Poly tetra fluoroethylene)

    ·PU(Polyurethane)

    ·NR(Natural Rubber)

    ·SBR(Styrene-butadiene Rubber)

    ·IIR(Butyl Rubber)

    ·ACM(Acrylate Rubber)

    If you need a special compound for the  Fiber-rubber diaphragm , we can develop one for you!

    All kinds of Diaphragm&Fiber-Rubber Diaphragm produced by our factory are suitable for automatic instrum ent high-tech electronic products, automobile manufacturing...

     At present, Yokey have more than 5000 specifications of o-ring mold ,can almost meet your any needs.

    * If you need to customize the o-ring,we have independent CNC machining center.And charge less than the market price mold fee.
