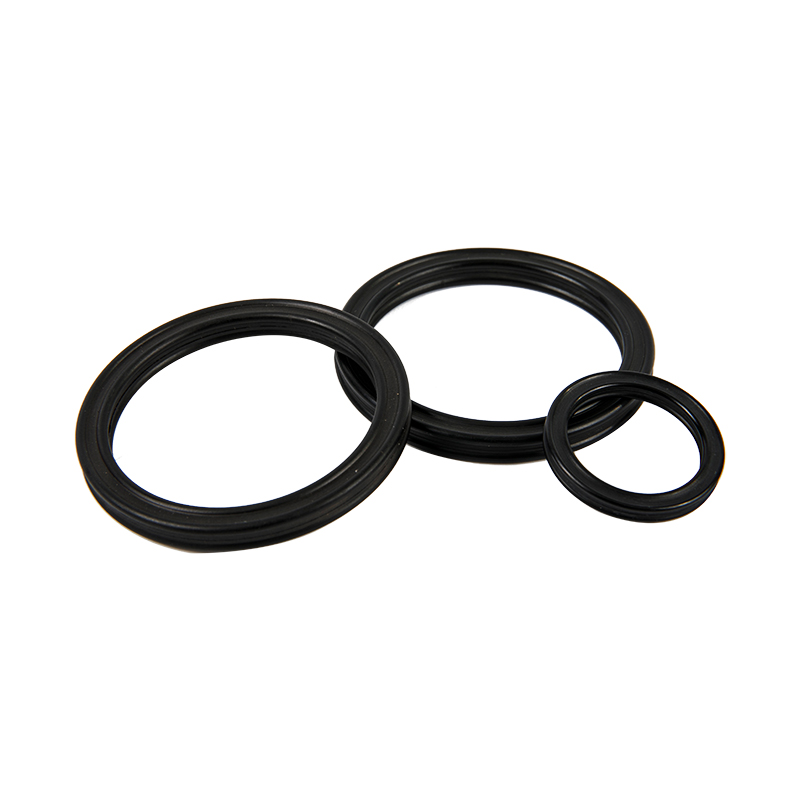

High quality Sealing Rubber X-Ring

Short Description:

X Ring vs O-ring:

the sealing principle of the Quad-Ring ®/X-ring is nearly the same as the O-ring sealing. The initial sealing is achieved by the diametrical squeeze in a right angled groove. The system pressure itself creates a positive sealing force.

Following are some advantages of Quad-Rings ® /X-Rings:

With Quad-Rings ®/X-Rings the standard grooves are deeper in comparison with O-ring glands. So the diametrical sqeeuze is lower than with O-rings. This makes dynamic sealing possible with reduced friction.

The four lips of the Quad-Ring ®/X-Ring create more sealing capacity and at the same time a groove for lubrication, which, is very favorable for dynamic sealing.

The most important advanctage of the Quad-Ring ®/X-Ring is the high stability for dynamic applications. In the situation that an O-ring rolls in the groove and creates torsion, Quad-Ring ®/X-Ring will slide with nog negative results.

More resistant to spiral failure.

Send email to us

Product Detail

Product Tags

Different Material Rubber Parts

Silicone O-ring Gasket

1. Name: SIL/ Silicone/ VMQ

3. Working Temp.: -60 ℃ to 230 ℃

4. Advantage: Excellent resistance to Low temp. heat and elongation;

5. Disadvantage: Bad performance to tear, abrasion, gas, and Alkaline.

EPDM O-ring

1. Name: EPDM

3. Working Temp.:-55 ℃ to 150 ℃

4.Advantage:Excellent resistance to Ozon ,Flame, Weathering.

5.Disadvantage:Poor resistance to Oxygen Ated-solvent

FKM O-ring

FKM is a better grade compound which is well suited for prolonged exposure to oils at high operating temperatures.

FKM is also good for steam applications. Operating temperature range is -20℃ to 220℃ and is manufactured in black,white and brown. FKM is phthalate free and also available in metal detectable/x-ray inspectable.

Buna-N NBR Gasket O-ring

Abbreviation: NBR

Common Name:Buna N, Nitrile, NBR

Chemical Definition:Butadiene Acrylonitrile

General Characteristics:Waterproof,oilproof

Durometer-Range (Shore A):20-95

Tensile Range (P.S.I):200-3000

Elongation (Max.%):600

Compression Set:Good

Resilience-Rebound:Good

Abrasion Resistance:Excellent

Tear Resistance:Good
